The Australis 50x50mm Aluminium System has been refreshed to now offer Monument and Pearl White powder coat as stocked finishes in to addition Satin Black. Importantly, the 1 Way & 2 Way profiles have increased wall thickness for better strength & rigidity. Deep glazing pockets provide for ease of installation coupled with captive wedge glazing whereby only one side of the glass panel requires a push in wedge rubber. The system may be used for balustrade or pool fencing application with 8, 10 or 12mm glass. Contact us for technical information and engineering information. A full range of matching accessories such as top caps, dress rings, domical covers, glazing rubbers and more is available.
The Australis 50x50mm Aluminium System has been refreshed to now offer Monument and Pearl White powder coat as stocked finishes in to addition Satin Black. Importantly, the 1 Way & 2 Way profiles have increased wall thickness for better strength & rigidity. Deep glazing pockets provide for ease of installation coupled with captive wedge glazing whereby only one side of the glass panel requires a push in wedge rubber. The system may be used for balustrade or pool fencing application with 8, 10 or 12mm glass. Contact us for technical information and engineering information. A full range of matching accessories such as top caps, dress rings, domical covers, glazing rubbers and more is available.
DESCRIPTION

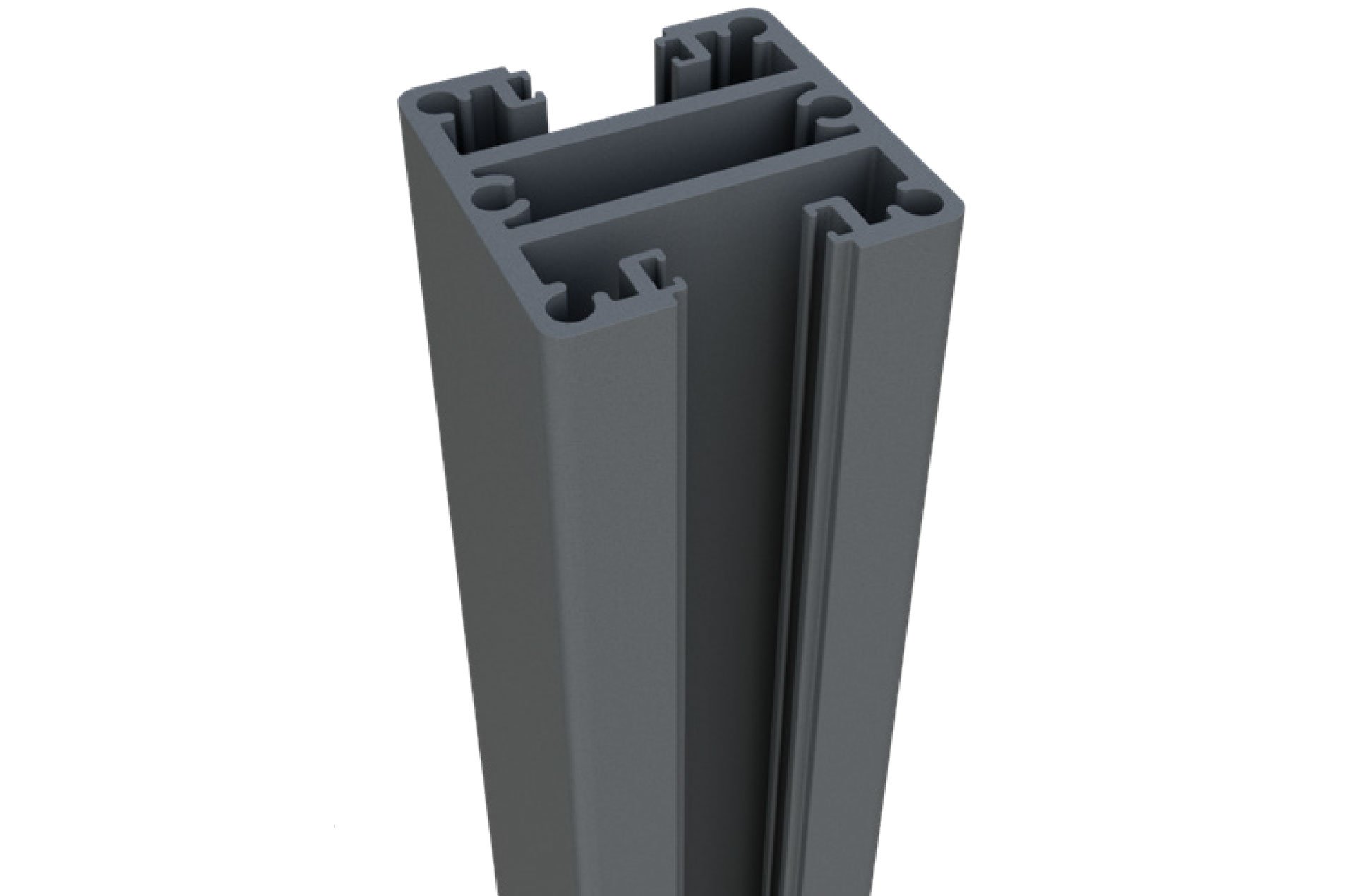

> 6100mm long double webbed profile in alloy 6106 T6
> Features 2 x sides with 3.1mm wall thickness for increased strength
> To turn into 1 way post, snap in infill on one side of profile
> Can be face mount installed with M12 fixing through double web cavity
> Non weld handrail bracket can also be installed in centre of cavity – contact us for more info
> lxx = 174.92 x 10E3 mmE4
> lyy = 260.79 x 10E3 mmE4
